产品介绍

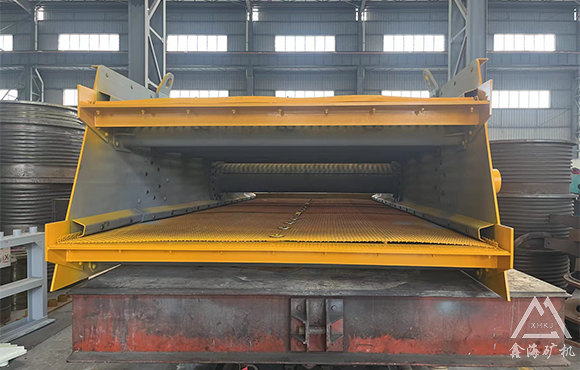

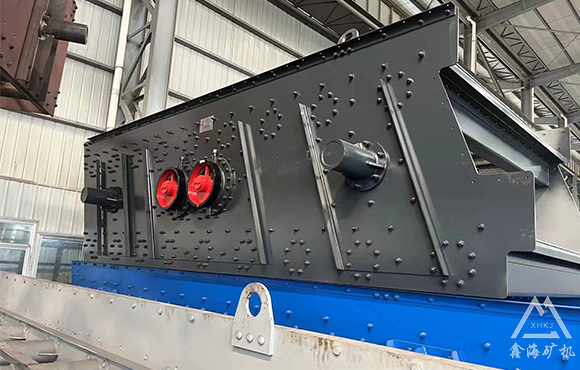

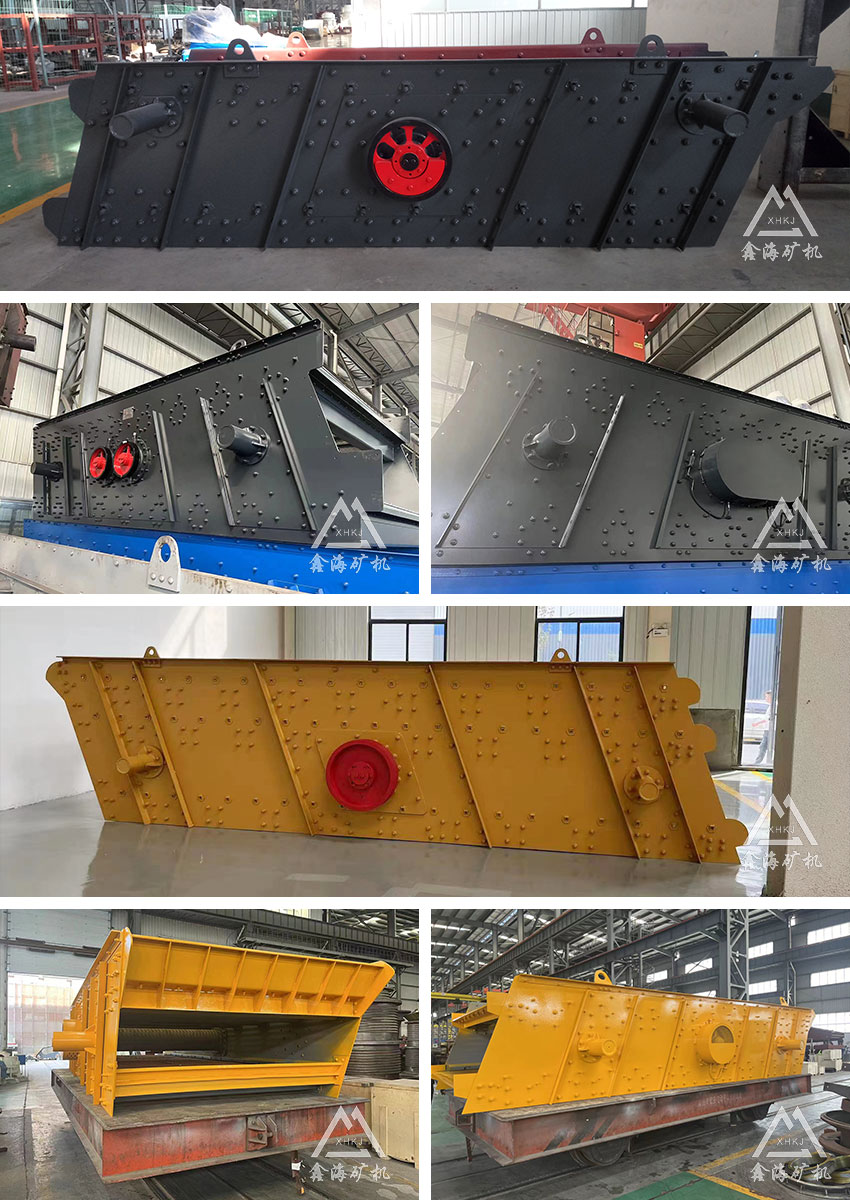

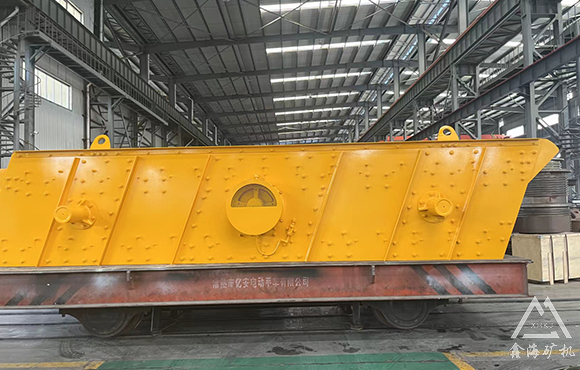

YA系列稀油润滑圆振动筛一种高能效的筛分设备，广泛用于多个行业。将原料分为多个粒度。这种筛分设备结构紧凑，易于操作和维护，减少停机维护时间。能够提高生产效率，确保成品筛分产量。产品图片
产品优势
1.稀油润滑激振器，半年更换一次润滑油，日常维护省心省力。2.偏心轴激振器结构，激振力更强。
3.皮带传动，比软连接传递扭矩效果更好。
4.轴承使用寿命更长。
产品参数
| 型号 Model |
筛网尺寸 Screen size (mm) |
筛网层数 Layers |
筛孔尺寸 Screen mesh (mm) |
最大进料尺寸Max feed size (mm) |
产量 Capacity (t/h) |
电机功率 Power (kw) |
振动频率 Vibrating frequency (r/min) |
双振幅 Double Amplifude (mm) |
| 2YA1237 | 3700×1200 |
2 | 3-80 | 100 | 10-80 |
11 | 750-950 |
6-9 |
| 3YA1237 | 3 | 3-80 | 100 | 15 | 6-9 | |||
| 4YA1237 | 4 | 3-80 | 100 | 18.5 | 6-9 | |||
| 2YA1548 | 4800×1500 |
2 | 3-80 | 100 | 30-200 |
18.5 | 750-950 |
6-9 |
| 3YA1548 | 3 | 3-80 | 100 | 18.5 | 6-9 | |||
| 4YA1548 | 4 | 5-80 | 100 | 30 | 6-9 | |||
| 2YA1860 | 6000×1800 |
2 | 3-80 | 100 | 60-300 |
22 | 750-950 |
6-9 |
| 3YA1860 | 3 | 3-80 | 100 | 30 | 6-9 | |||
| 4YA1860 | 4 | 3-80 | 100 | 45 | 6-9 | |||
| 2YA2160 | 6000×2100 |
2 | 3-80 | 100 | 80-400 |
30 | 700-900 |
6-9 |
| 3YA2160 | 3 | 3-80 | 100 | 37 | 6-9 | |||
| 4YA2160 | 4 | 3-80 | 100 | 45 | 6-9 | |||
| 2YA2460 | 6000×2400 |
2 | 5-80 | 100 | 100-500 |
37 | 700-900 |
6-9 |
| 3YA2460 | 3 | 5-80 | 100 | 37 | 6-9 | |||
| 4YA2460 | 4 | 5-80 | 100 | 45 | 6-9 | |||
| 2YA2675 | 7500×2600 | 2 | 5-80 | 100 | 150-480 | 45 | 700-900 | 6-9 |
| 3YA2675 | 3 | 5-80 | 100 | 30×2 | 6-9 | |||
| 2YA2870 | 7000×2800 | 2 | 5-80 | 100 | 150-550 | 30×2 | 700-900 | 6-9 |
| 3YA2870 | 3 | 5-80 | 100 | 37×2 | 6-9 | |||
| 2YA3072 | 7200×3000 |
2 | 5-80 | 100 | 150-600 |
30×2 | 700-900 |
6-9 |
| 3YA3072 | 3 | 5-80 | 100 | 37×2 | 6-9 | |||
| 4YA3072 | 4 | 5-80 | 100 | 37×2 | 6-9 | |||
| 2YA3675 | 7500×3600 | 2 | 5-80 | 100 | 200-1000 | 37×2 | 700-900 | 6-9 |
| 3YA3675 | 3 | 5-80 | 100 | 45×2 | 6-9 |
